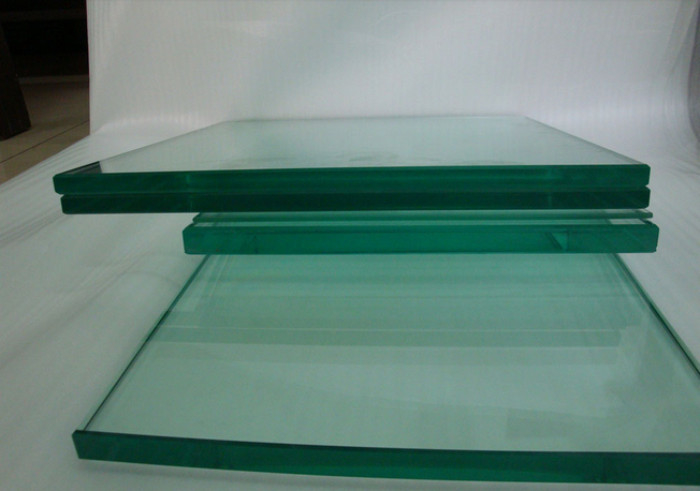

Curved Glass Building Material Tempered Clear Heat Insulated Glass

large.img.alt
small.img.alt

Large Image :  Curved Glass Building Material Tempered Clear Heat Insulated Glass Get Best Price

Product Details:
Place of Origin: China
Certification: CCC/ISO9001
Model Number: LH-TG003
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Material: Glass
Application: Indoor/Outdoor Color: Clear,grey,blue ,green,etc
Structure: Solid Function: Building / Decorative Glass
Shape: Flat, Curved, Irregular Shape
High Light:

frosted tempered glass panels

,

flat tempered glass

Curved Glass Building Material Tempered Clear Heat Insulated Glass





Description


Toughened or tempered glass is a type of safety glass processed by controlled thermal or chemical treatments to increase its strength compared with normal glass. Tempering puts the outer surfaces into compression and the inner surfaces into tension. Such stresses cause the glass, when broken, to crumble into small granular chunks instead of splintering into jagged shards as plate glass (aka: annealed glass) creates. The granular chunks are less likely to cause injury.
The water rapidly cools the molten glass on the outside, while the inner portion of the glass remains significantly hotter. When the glass on the inside eventually cools, it contracts inside the already-solid outer part. This contraction sets up very large compressive stresses on the surface, while the core of the drop is in a state of tensile stress.
As a result of its safety and strength, toughened glass is used in a variety of demanding applications, including passenger vehicle windows, shower doors, architectural glass doors and tables.





Specification



Max. size of flat tempered glass: 4-8mm: 2400×3600mm
10-12mm: 2400*4200mm
15-19mm:2400*4500mm
Max. size of bent tempered glass: 4-15mm:2400*1500mm
Radius of tempered glass: Thickness 4 ~ 6mm R ≥ 480mm
8 ~ 12mm R ≥ 800mm
15mm and above R ≥ 1500mm
Thickness of tempered glass: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm,19mm, etc.
Color of tempered glass: Clear, Ultra clear;
Euro bronze, golden bronze;
Blue, ocean blue, dark blue, light blue;
F green, light green, dark green;
Euro Grey, dark Grey.
Production Range  Low-E glass,tempered glass, insulated glass, laminated glass,
reflective glass etc.
Application of tempered glass Building Curtain Wall, Windows, Doors, Exhibition Hall,
Shower Room And Furniture Glass






FAQ



1, What are your main products?
Tempered Glass(Toughened Glass) laminated glass,insulated glass,Lowe glass,fire proof glass,bulletproof glass,ceramic frit laminated glass,Security Glass,Decorative glass,silk printing glass ,hardware fitting of glass installation,Aluminum profile etc.
2, Can you provide what size of glass?
Max Size:3300mm×16000mm,Min Size:300mm×300mm.
3, Can you provide what thickness of flat glass?
3mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm.
4, Can you provide what kind of film and thickness?
PVB Film:0.38mm.0.76mm.1.52mm.2.28mm.SGP Film:0.89mm,2.28mm.
4, What is the payment method?
 T/T,L/C
5, How long is the delivery time ?
20~30days.





Curved Glass Building Material Tempered Clear Heat Insulated Glass 0





Curved Glass Building Material Tempered Clear Heat Insulated Glass 1
