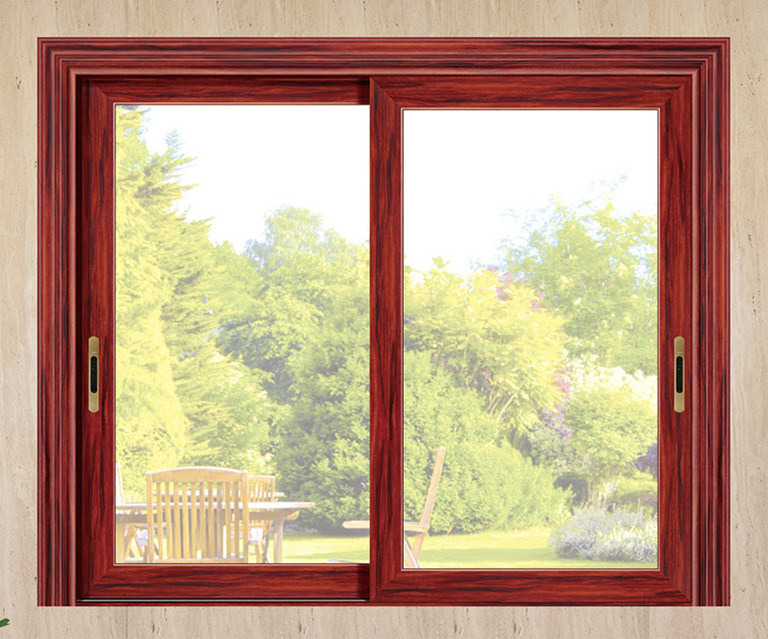

Rose Wood Glass Horizontal Slider Window / Double Kitchen Sliding Window

large.img.alt
small.img.alt small.img.alt

Large Image :  Rose Wood Glass Horizontal Slider Window / Double Kitchen Sliding Window Get Best Price

Product Details:
Place of Origin: Guangdong
Brand Name: LEADING
Certification: ISO 9001 / CE
Model Number: LD-SW002
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Payment Terms: T/T, L/C
Supply Ability: 10000 sqm per month
Detailed Product Description
Frame Material: Aluminium Alloy Glass Type: Low-E, Tempered, Frosted, Float, Tinted
Open Style: Sliding Opening Pattern: Horizontal
Suface Treament: Powder Coating, Anodized , Electrophoresis Insect Screen: Available
Special Function: Fireproof, Waterproof, Soundproof Application Area: Resident, Office, Industrial, Etc.
High Light:

aluminum slider window

,

glass sliding window

Rose Wood Glass Horizontal Slider Window / Double Kitchen Sliding Window

1. It is made of thermally broken aluminium profiles, very good in evergy saving performance. It would work even better if with Low-E glass



2. Double glazed panel, 5mm+9A+5mm tempered, AS2208 certified; heat reflective/low-E glass is optional



3. Famous hardware brand



4. Stainless steel fly screen is optional



5. Opening style: sliding window



6. Grill design: optional



7. Sample corner sample policy: free sample with freight collect.



Technical Data:

Items Aluminum sliding window
Profile thickness 1.4mm
Frame width 100mm
Frame face width 33mm
Sash face width 68mm
Glazing options Type lOW-E/Reflective/Tempered/Floated/Coated
Single glazing 4/5/6/8/10/12/15/19mm etc
Double glazing Clear, Laminated, Low-E, Tempered
5mm+12A+5mm, 6mm+12A+6mm,5mm+0.76PVC+5mm,
6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc.

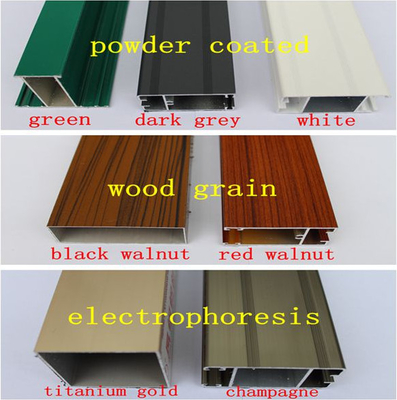

Aluminum  color options Anodized black,Anodized light champagne,Wooden grain,
Electrophoresis silver, powder coating white/grey,etc.
Glass  color options Light grey,Light blue,Dark green,Dark blue,Light green,Clear glass,
 Bronze, Ford blue
Accessories Handle,Hinge,Ball lock,square lock
Rubber strip for sealing,System
Retaining Washer
Performance parameter 1.Wind pressure performance   5.0kpa   GB/T7106-2008/9 Class
2.Air permeability       0.5m3/(h.m)  GB/T7107-2008/8 Class
3.Rain water permeability     700Pa     GB/T7108-2008/6 Class
4.Air noise performance     45dB        GB/T8485-2008/6 Class
5.Insulation performance1.1W/(m2.k)GB/T8484-2008/10 Class
6.Shading performance of SC      0.2    GB/T2680-2008/7 Class



 Packing information:
Material: Plastic film, Foam, Carton, Wooden box
20FT Door(1.8mx2.2m) Window(1.2mx1.2m)
  90pcs 200pcs
40FT 200pcs 420pcs
40HQ 250pcs 530pcs

We also can supply more type windoors:

  Aluminum Profile

Sliding / Casement / Folding Door

Sliding / Casement / Folding / Hung / Double Hung / Swing / Fixed / Louver Glass

Curtain Wall , Partition , Ceiling

   Building Glass

Tempered / Laminated / Wired Glass, Mirror



Product Applications:

 Business Organizations

 supermarket , large scale shopping malls , exclusive agency , chain shops ,  large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy

 Financial Organizations

 Banks , negotiable securities , funds , insurance companies , pawnshops ;  Non profit Organizations : Telecommunications , post offices hospital , school

 Public Places

 subway , airports, stations , gas stations , toll stations , bookstores , parks ,

 exhibition halls , stadiums , museums , convention centers , ticket agencies ,

 HR market , lottery centers ; Real Estate Propert : Apartments , villas ,offices,

 commercial buildings , model rooms , property brokers;

 Entertainments

 Movie theaters , fitness halls, country clubs , clubs , massage rooms , bars ,

 cafes , Internet bars , beauty shops



Product Features:
1. Excellent material for smooth and subtle edges.
2. Extrusion of construction and other industrial purposes.
3. Colorful anodized or electrostatic or powder coated surface treatment.
4. Customized surface finishes are welcome.
5. Packing : plastic film and paper sub-bundles.
6. Available in single , double or triple glazing.
7. Multi - point locking hardware for better security.
8. Dust seal on head track reduces wear and corrosion.
9. Available in low profile sill for easy access applications.
10. Can be design with internal  Article decoration or blinds.
11. Soud insulation : 33dB / 500HZ
12. Wind pressure resistance : 4.0kPa
13. Air permeation resistance : 0.5m² / (h.m.)
14. Water resistance : 500Pa
15. U - Value < 1.1w/m2.k
