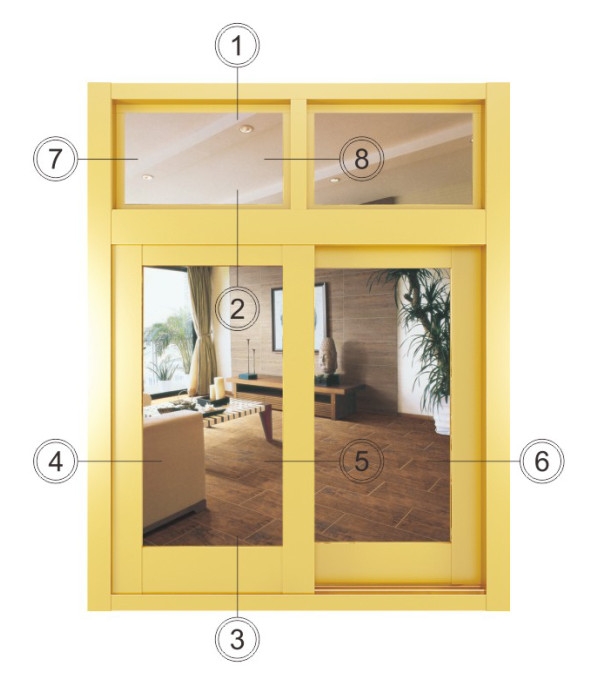

Fireproof Small Double Aluminium Sliding Windows With Thermal Insulating Glass

Large Image : Fireproof Small Double Aluminium Sliding Windows With Thermal Insulating Glass Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	LEADING
Model Number:	LD-SW007

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Frame Material:	Aluminium Alloy	Glass Type:	Low-E, Tempered, Forested, Float, Tinted
Open Style:	Sliding	Opening Pattern:	Horizontal
Suface Treament:	Powder Coating, Anodized , Electrophoresis	Insect Screen:	Available
Special Function:	Fireproof, Waterproof, Soundproof	Application Area:	Resident, Office, Industrial, Etc.
High Light:	aluminum slider window , horizontal slider window

Fireproof Small Double Aluminium Sliding Windows With Thermal Insulating Glass

Specifications

1. ISO 9001-2000
2. Sound & Heat Insulation
3. Durable using life
4. Top quality hardware
5. Competitive price sliding window

Technical Data

Items	Aluminum sliding window
Profile thickness	1.4mm
Frame width	100mm
Frame face width	33mm
Sash face width	68mm
Glazing options	Type lOW-E/Reflective/Tempered/Floated/Coated Single glazing 4/5/6/8/10/12/15/19mm etc Double glazing Clear, Laminated, Low-E, Tempered 5mm+12A+5mm, 6mm+12A+6mm,5mm+0.76PVC+5mm, 6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc.
Aluminum color options	Anodized black,Anodized light champagne,Wooden grain, Electrophoresis silver, powder coating white/grey,etc.
Glass color options	Light grey,Light blue,Dark green,Dark blue,Light green,Clear glass, Bronze, Ford blue
Accessories	Handle,Hinge,Ball lock,square lock Rubber strip for sealing,System Retaining Washer
Performance parameter	1.Wind pressure performance 5.0kpa GB/T7106-2008/9 Class 2.Air permeability 0.5m3/(h.m) GB/T7107-2008/8 Class 3.Rain water permeability 700Pa GB/T7108-2008/6 Class 4.Air noise performance 45dB GB/T8485-2008/6 Class 5.Insulation performance1.1W/(m2.k)GB/T8484-2008/10 Class 6.Shading performance of SC 0.2 GB/T2680-2008/7 Class

Packing information

Material: Plastic film, Foam, Carton, Wooden box
20FT	Door(1.8mx2.2m)	Window(1.2mx1.2m)
	90pcs	200pcs
40FT	200pcs	420pcs
40HQ	250pcs	530pcs

Payment term and Loading Quantity:

`Payment term :` T/T , L/C or Cash
20Ft	200pcs for window with normal size (1.2mx1.2m)
	90pcs for Doors with normal size (1.8mx2.2m)
40Ft	420pcs for window with normal size (1.2mx1.2m)
	200pcs for Doors with normal size (1.8mx2.2m)
40HQ	530pcs for window with normal size (1.2mx1.2m)
	250pcs for Doors with normal size (1.8mx2.2m)

We also can supply more type windoors:

Aluminum Profile	Sliding / Casement / Folding Door
	Sliding / Casement / Folding / Hung / Double Hung / Swing / Fixed / Louver Glass
	Curtain Wall , Partition , Ceiling
Building Glass	Tempered / Laminated / Wired Glass, Mirror
