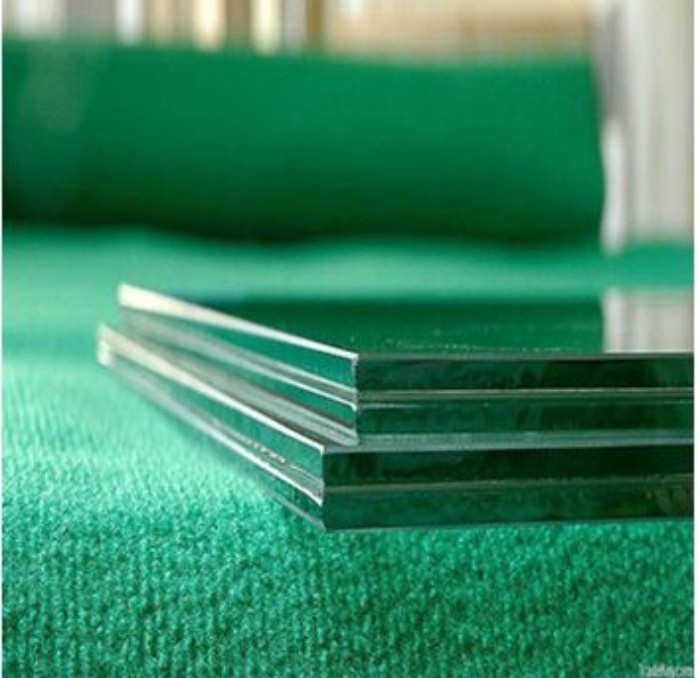

8mm Glass Building Material Insulated Tempered Laminated Glass 2400 × 3600mm

large.img.alt
small.img.alt

Large Image :  8mm Glass Building Material Insulated Tempered Laminated Glass 2400 × 3600mm Get Best Price

Product Details:
Place of Origin: China
Certification: CCC/ISO9001
Model Number: LH-TG012
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Material: Glass
Application: Indoor/Outdoor Color: Clear,grey,blue ,green,etc
Structure: Solid Function: Building / Decorative Glass
Shape: Flat, Curved, Irregular Shape
High Light:

Insulated Glass Panels

,

flat tempered glass

8mm Glass Building Material Insulated Tempered Laminated Glass 2400 × 3600mm





Description


Tempered glass is produced by heating annealed glass in a furnace to 620°C. Progressing from the furnace, the glass is rapidly cooled with jets of cold air, inducing compressive stresses to the surface while the center remains tensile.
4-5 times stronger than annealed glass of the same thickness.
Stronger resistance to thermal breakage than annealed or heat strengthened glass.
If breakage occurs the glass breaks up into small, cubical fragments, which are not threatening to humans.
Suitable for use as a safety glass as defined by consumer product safety association 16CFR 1201, ansiz 97.1 1984 and BS6262.
Conforms to CCC, AS/NZS2208-1996, EN12150-1, and ASTM C1048. All work done on glass (beveling, cutting, bending, etc) must be done before tempering.



Specification



Max. size of flat tempered glass: 4-8mm: 2400×3600mm
10-12mm: 2400*4200mm
15-19mm:2400*4500mm
Max. size of bent tempered glass: 4-15mm:2400*1500mm
Radius of tempered glass: Thickness 4 ~ 6mm R ≥ 480mm
8 ~ 12mm R ≥ 800mm
15mm and above R ≥ 1500mm
Thickness of tempered glass: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm,19mm, etc.
Color of tempered glass: Clear, Ultra clear;
Euro bronze, golden bronze;
Blue, ocean blue, dark blue, light blue;
F green, light green, dark green;
Euro Grey, dark Grey.
Production Range  Low-E glass,tempered glass, insulated glass, laminated glass,
reflective glass etc.
Application of tempered glass Building Curtain Wall, Windows, Doors, Exhibition Hall,
Shower Room And Furniture Glass






FAQ



1, What are your main products?
Tempered Glass(Toughened Glass) laminated glass,insulated glass,Lowe glass,fire proof glass,bulletproof glass,ceramic frit laminated glass,Security Glass,Decorative glass,silk printing glass ,hardware fitting of glass installation,Aluminum profile etc.
2, Can you provide what size of glass?
Max Size:3300mm×16000mm,Min Size:300mm×300mm.
3, Can you provide what thickness of flat glass?
3mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm.
4, Can you provide what kind of film and thickness?
PVB Film:0.38mm.0.76mm.1.52mm.2.28mm.SGP Film:0.89mm,2.28mm.
4, What is the payment method?
 T/T,L/C
5, How long is the delivery time ?
20~30days.
