Product Details:
Payment & Shipping Terms:
|
Frame Material: | Aluminium Alloy | Open Style: | Swing |
---|---|---|---|
Type: | Casement Windows / Opening Window | Opening Pattern: | Horizontal |
Use Area: | Commercial / Household | Glass Layer: | Single, Double, Triple |
Surface Treatment: | Powder Coating, Anodized, Electrophoresis | Rubber: | Good Sealing Performance / Waterproof |
Hardware: | High Quality | Glass: | 5mm+9A+5mm Tempered Glass |
High Light: | metal casement window,arched casement windows |

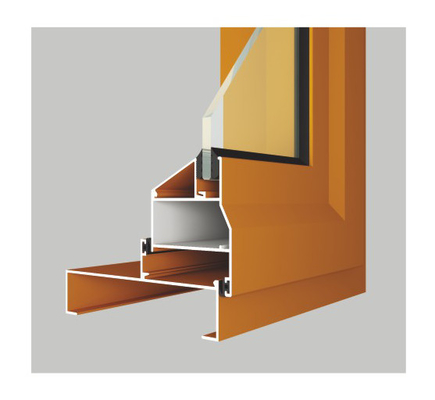

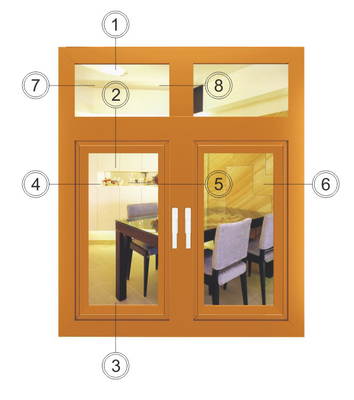

Anodised Aluminium Composite Windows / Yellow Horizontal Casement Window
Description:
1. Light weight, high strength
2. Good sealing performance
3. Corrosion resistance
4. Beautiful appearance
5. Soundproof
Style | European Style, Aluminium casement window ,opening window ,swing window | |
Frame | Profile-Aluminum: | customized |
1. Aluminum 6003 | ||
2. Thickness: 1.2mm, 1.4mm, 2.0mm, 3.0mm | ||
3. Thermal break profiles | ||
4. Surface treatment: anodized, powder coating, electrophoresis, pvdf etc.. | ||
Glass/Glazed | 1.Single-glass 5mm,6mm,8mm, ect. | customized |
2.Double-glazing 5mm+9A+5mm,5mm+12A+5mm,6mm+9A+6mm, ect. | ||
Screen | Retractable screen,sliding screen,fixed screen,security screen. | customized |
Packing | Wooden case can be made for special care delivery.We can make other packing as per your requests. | customized |
Quality control | ISO9001:2008,CE,SONCAP.AS2047,ect. | |
Characterisitics | 1. Easy cleaning; | |
2. Sound and hot insulating; | ||
3. Improves energy efficiency; | ||
4. Elegant appearance and can be used in any construction buildings. |
FAQ
Q1: |
What is your main product? |
A: |
We can supply the aluminium complete system (including profile, glass, hardware, accessories) as well as the finished products ready for installation. |
Q2: |
What’s your price? |
A: |
The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you. |
1) Shop drawing / window schedule to show the window opening way, dimensions, quantity ; |
|
2) Aluminium color; |
|
3) Type of glass (single or double or laminated or others) / |
|
thickness of glass ( 5mm or 6mm or else , if you have no idea we can recommend according to window size) / |
|
colour of glass (clear, tinted, reflective, Low-E or others, with Argon or without). |
|
Q3: |
What is the standard size of your windows and doors? |
A: |
Our product is CUSTOMER MADE. We always manufacture windows and doors according to buyer's dimensions. |
Q4: |
What is your delivery time? |
A: |
For the series we stocked 10 working days with 300M2 , For the series unstocked 40 working days with 700M2. |
Q5: |
What is your payment terms? |
A: |
30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container. |
Q6: |
Will we need to install the glass (onsite glazed) or do your windows come with the glass installed? |
A: |
We will install glass at factory based on windows/doors dimension to make sure they can be safe during transportation and if easy for you to install the whole windows/doors on site glazed are recommended for big sized products. |
Q7: |
What is your warranty ? What do we do in case of problems? |
A: |
5 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation. |
In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days. |
|
Q8: |
What kind of service will you provide? |
A: |
We are able to provide the engineering as well as supervising service to guide installation our windows and doors, curtain wall as well. |
Q9: |
Are your products Certificated? |
A: |
Yes, we will make our product tested and certificated if your order quantity is one 40-feet-container. |
Color Choose :
Silver, white, dark grey, black, brown, wood grain....
Glass Choose :
Single glass:4mm-8mm
Double glass:5mm+6A/9A/12A+5mm
Laminated glass:5mm+0.38/0.76/1.52PVB+5mm...
Type:Low-e/reflective/tempered glass
Product Applications:
Business Organizations |
supermarket,large scale shopping malls,exclusive agency,chain shops, |
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices hospital, school |
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, |
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, |
Product Features:
1. Excellent material for smooth and subtle edges.
2. Extrusion of construction and other industrial purposes.
3. Colorful anodized or electrostatic or powder coated surface treatment.
4. Customized surface finishes are welcome.
5. Packing: plastic film and paper sub-bundles.
6. Available in single ,double or triple glazing.
7. Multi-point locking hardware for better security.
8. Dust seal on head track reduces wear and corrosion.
9. Available in low profile sill for easy access applications.
10.Can be design with internal Article decoration or blinds.
11.Soud insulation:33dB/500HZ
12.Wind pressure resistance:4.0kPa
13.Air permeation resistance:0.5m²/(h.m.)
14.Water resistance:500Pa
15.U-Value<1.1w/m2.k
